Emulator Guide

Emulator Overview

The LAFVIN Retro Game Kit includes emulators for multiple gaming platforms, supporting classic retro games. Each emulator is optimized for ESP32S3 to provide smooth gaming experience.

Supported Gaming Platforms

The system supports the following 13 gaming platforms:

Supported Gaming Platforms

Platform

Description

File Format

NES (Nintendo Entertainment System)

8-bit classic console

.nes

SNES (Super Nintendo)

16-bit console

.sfc, .smc

GB (Game Boy)

Nintendo handheld

.gb

GBC (Game Boy Color)

Color handheld

.gbc

GBA (Game Boy Advance)

Nintendo 32-bit handheld

.gba

Game & Watch

Nintendo early handheld

.gw

SMS (Sega Master System)

Sega 8-bit console

.sms

GG (Game Gear)

Sega color handheld

.gg

MD/Genesis (Mega Drive)

Sega 16-bit console

.md, .bin

Colecovision

Early home console

.col

PCE (PC Engine/TurboGrafx-16)

NEC 16-bit console

.pce

Atari Lynx

Atari color handheld

.lnx

DOOM

Classic FPS game

.wad

MSX

MSX personal computer

.rom

TF Card Folder Structure

Game files are stored in corresponding folders on the TF card. In the SD card section, you can copy the downloaded folders into the memory card.

/
├── nes/          # Nintendo Entertainment System games
├── snes/         # Super Nintendo games
├── gb/           # Game Boy games
├── gbc/          # Game Boy Color games
├── gw/           # Game & Watch games
├── sms/          # Master System games
├── gg/           # Game Gear games
├── md/           # Mega Drive/Genesis games
├── col/          # Colecovision games
├── pce/          # PC Engine games
├── lnx/          # Atari Lynx games
├── doom/         # DOOM WAD files
└── msx/          # MSX games

Note

Please place game files in the corresponding folders - the system will automatically recognize and display them in the game library.

Basic Operations

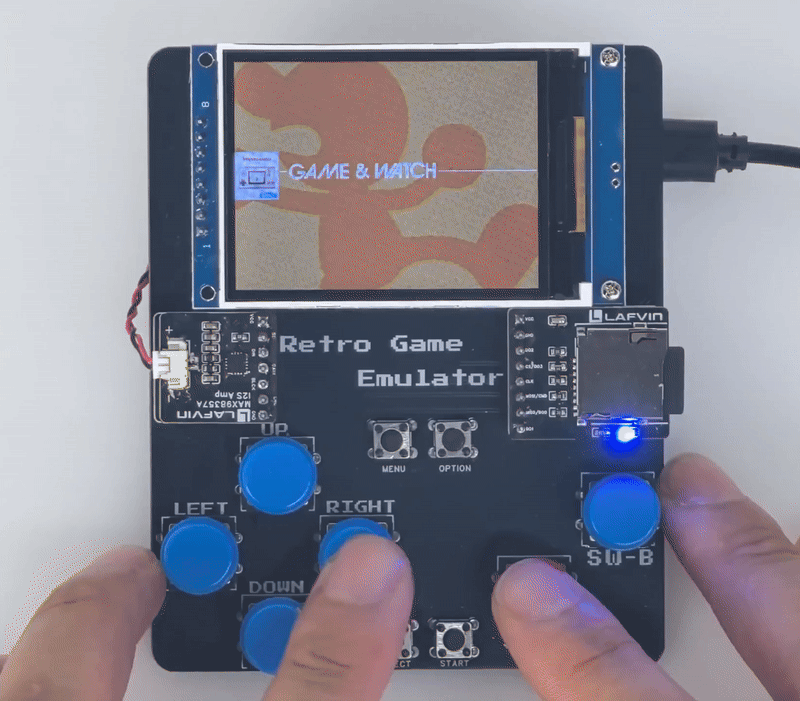

Starting a Game

  1. Ensure TF card is properly inserted and contains game files

  2. Select emulator platform from main menu

  3. Select and enter emulator

  4. Browse and select the game you want to play

  5. Press A button to start game

In-Game Operations

During gameplay:

  • Use directional keys to control character movement

  • Use A/B buttons for game operations

  • Press Start button to pause game

  • Press Menu button to open game menu

Exiting a Game

  1. Press Menu button to open game menu

  2. Select Quit

Tip

It’s recommended to select “Save & Quit” before exiting to avoid losing game progress.

Game Saves

Manual Save

Press Menu button during gameplay and select SAVE & Continue:

  1. Select save slot (usually 4 slots available)

  2. Press A button to confirm save

  3. System will display save success message

Loading a Save

Press Menu button during gameplay and select Load Game:

  1. Select the save slot you want to load

  2. Press A button to confirm loading

  3. Game will continue from save point

Note

Not all games support save functionality - this depends on the game itself and emulator support.

Common Issues

Game Won’t Start

Possible Causes:

  • ROM file format is incorrect

  • ROM file is corrupted

  • Emulator doesn’t support this game

Solutions:

  1. Check if file format is correct

  2. Try re-downloading ROM file

Game Running Slow & Laggy

Possible Causes:

  • Game has high hardware requirements

  • For advanced features, see Advanced
